PWM → CONSTANT CURRENT LED DRIVER · IP67

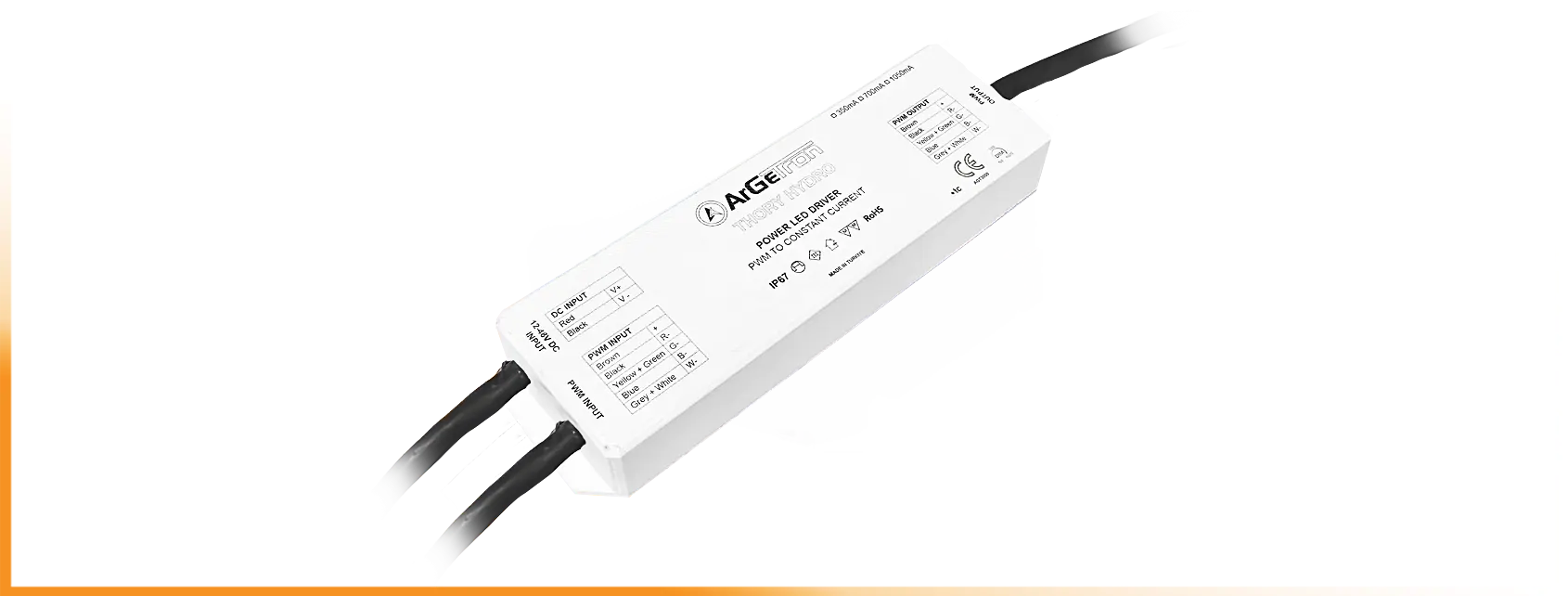

IP67 Outdoor PWM / Constant Current Driver
The water- and dust-proof IP67 version of Thory. Produces four 350 / 700 mA constant current outputs from a PWM input; ideal for outdoor power LED applications.
IP674-Ch350 / 700 mAPWM Input
WHY THORY HYDRO
Key Features
IP67 Protection
Water- and dust-proof cabled housing for direct outdoor installation.
PWM Input
Synchronous operation without addressing.
4-Channel Constant Current
350 / 700 mA per channel; up to 15 LEDs in series.
Long Cable Runs
Long cable distance between LEDs and driver.
SPECIFICATIONS
Technical Specifications
Input SignalPWM (4-channel)
Output4-channel constant current
Output Current350 / 700 mA (selectable per channel)
Input Voltage12–48 Vdc
LEDs in SeriesUp to 15 per channel
Power Consumption< 1 W
ConnectionsCabled: 2-wire power · 5-wire PWM input · 5-wire constant current output
Protection ClassIP67
Dimensions (W×H×D)133.6 × 22.4 × 41.6 mm
HousingNon-conductive, non-flammable, waterproof
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Document Request
Contact our sales team for the latest brochure and manual.
APPLICATIONS
Where Is It Used?
Outdoor Facades
Facade lighting exposed to rain and dust.
Landscape & Poolside
Garden, pathway and wet-area lighting.
Outdoor Fixtures
Outdoor LED bars, wallwashers and projectors.
Architectural Exterior
Architectural exterior and bridge lighting projects.
CONTACT
Is Thory Hydro right for your project?
Our technical team helps you choose the right controllers and drivers for your installation.
