DALI DT6 / DT8 DIMMER · CONSTANT CURRENT · IP67

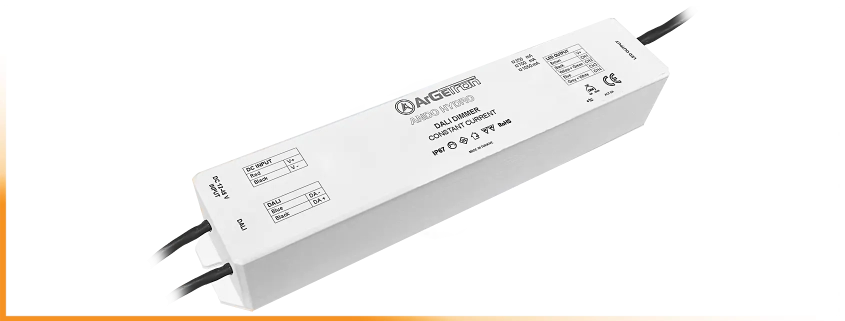

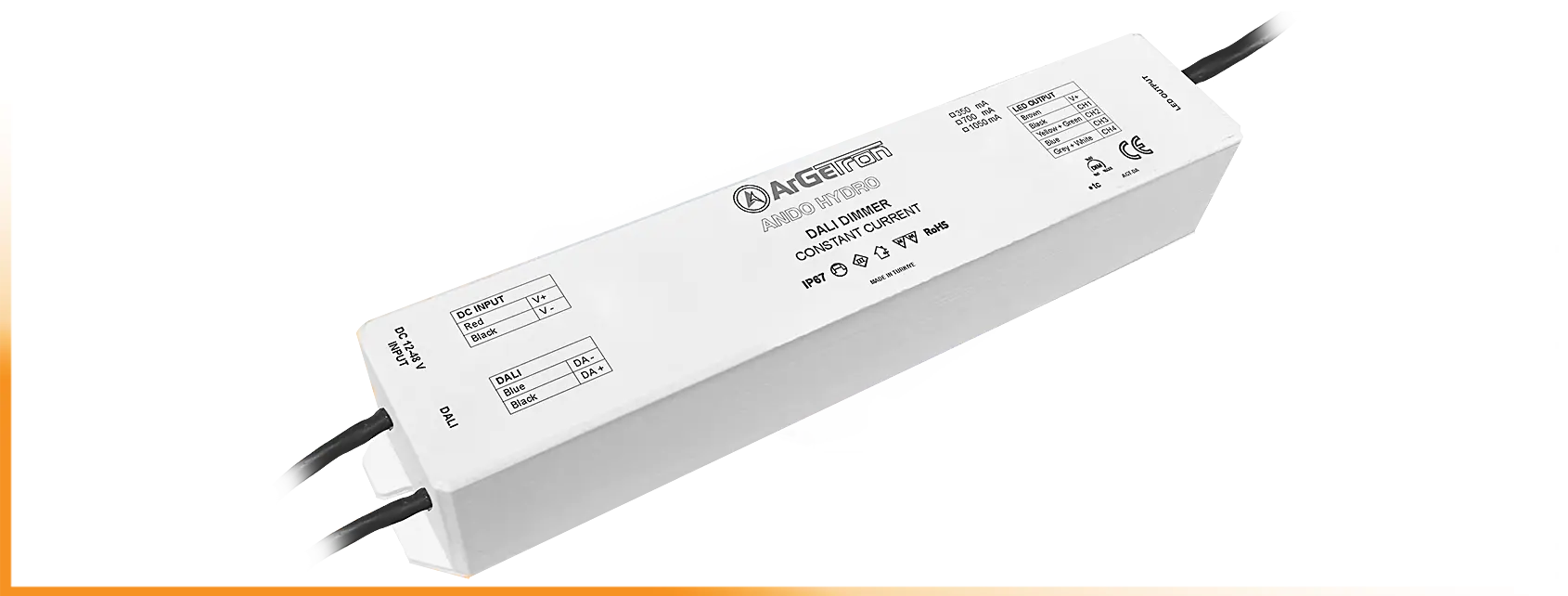

IP67 Outdoor Constant Current DALI Dimmer
The water- and dust-proof IP67 version of Ando. DT6 / DT8 compatible, four 350 / 700 mA constant current outputs; built to withstand rain, humidity and temperature swings.
IP674-Ch350 / 700 mADALI DT6 / DT8
WHY ANDO HYDRO
Key Features
IP67 Protection
Water- and dust-proof, UV-resistant cabled housing.
4-Channel Constant Current
350 / 700 mA per channel; up to 15 LEDs in series.
DT6 & DT8 Compatible
Addressing and settings are done from the DALI master.
Stable Operation
Low sensitivity to electrical noise with integrated termination.
SPECIFICATIONS
Technical Specifications
ProtocolDALI · DT6 / DT8
Output4-channel constant current
Output Current350 / 700 mA (selectable per channel)
Input Voltage12–48 Vdc
LEDs in SeriesUp to 15 per channel
Power Consumption< 1 W
ConnectionsCabled: 4-wire power + DALI input · 5-wire constant current output
AddressingVia DALI master (no display/buttons)
Protection ClassIP67
Dimensions (W×H×D)182.2 × 22.4 × 37.5 mm
HousingNon-conductive, non-flammable, waterproof, UV-resistant
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Product Brochure
Dali Ando Hydro technical brochure (PDF, EN).
APPLICATIONS
Where Is It Used?
Outdoor Facades
Facade lighting exposed to rain and dust.
Landscape & Poolside
Garden, pathway and wet-area lighting.
Outdoor Fixtures
Outdoor LED bars, wallwashers and projectors.
Architectural Exterior
Architectural exterior and bridge lighting projects.
