DMX-512 / RDM RECEIVER · CONSTANT CURRENT · IP67

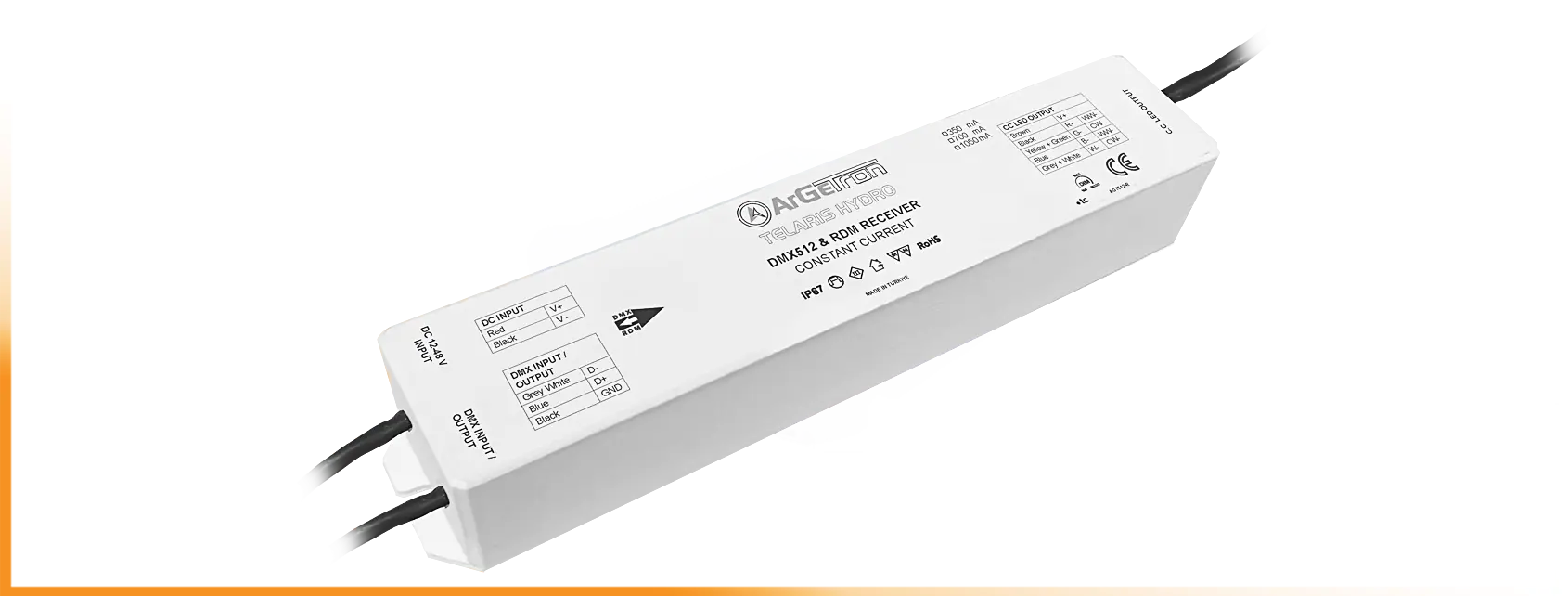

IP67 Outdoor Constant Current DMX Receiver
The water- and dust-proof IP67 version of Telaris. Four 350 / 700 mA constant current outputs; addressing is done entirely over RDM — no display or buttons.
IP674-Ch350 / 700 mARDM Addressing
WHY TELARIS HYDRO
Key Features
IP67 Protection
Water- and dust-proof cabled housing for direct outdoor installation.
4-Channel Constant Current
350 / 700 mA per channel; up to 15 LEDs in series.
Addressing via RDM
No display or buttons; address and settings are configured over RDM.
Max Power Limitation
Protects LEDs and driver for stable operation.
SPECIFICATIONS
Technical Specifications
ProtocolDMX-512 / RDM
Output4-channel constant current
Output Current350 / 700 mA (selectable per channel)
Input Voltage12–48 Vdc
LEDs in SeriesUp to 15 per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · Dynamic White
ConnectionsCabled power · DMX input · constant current output
AddressingRDM only (no display/buttons)
Protection ClassIP67
HousingNon-conductive, non-flammable, waterproof
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Document Request
Contact our sales team for the latest brochure and manual.
APPLICATIONS
Where Is It Used?
Outdoor Facades
Power LED facade projects exposed to rain and dust.
Outdoor Projectors
IP65+ RGB/RGBW LED projectors.
Landscape Lighting
Garden, pathway and poolside lighting.
Open-Air Events
Festival and open-air stage systems.
