DMX-512 / RDM RECEIVER · CONSTANT CURRENT · 6-CH

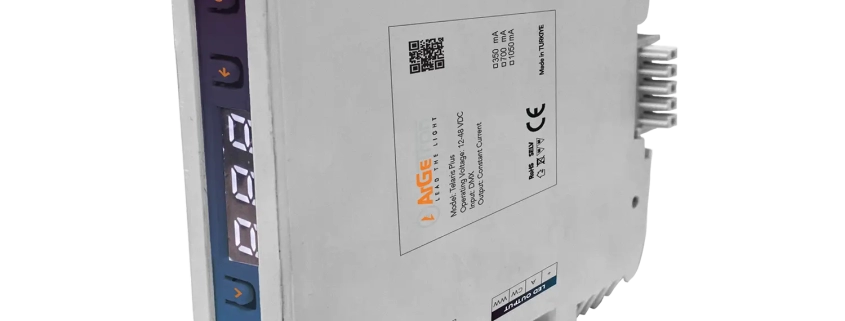

6-Channel Constant Current DMX Receiver
The 6-channel version of Telaris for multi-channel power LED fixtures such as RGBWW or RGB+CCT. Selectable 350 / 700 mA constant current per channel, DMX-512 / RDM control. DIN-rail mounting with T-bus connection.
6-Ch350 / 700 mA12–48 VdcDMX-RDMDIN Rail · T-Bus
WHY TELARIS PLUS
Key Features
6-Channel Output
Drive multi-channel fixtures from a single unit — 350 or 700 mA selectable per channel.
DIN Rail & T-Bus
Quick DIN-rail mounting in the panel, with T-bus connection support.
DMX-512 & RDM
Remote addressing and device discovery with RDM.
Max Power Limitation
Protects LEDs and driver for stable operation.
SPECIFICATIONS
Technical Specifications
ProtocolDMX-512 / RDM
Output6-channel constant current
Output Current350 / 700 mA (selectable per channel)
Input Voltage12–48 Vdc
LEDs in SeriesUp to 15 per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · RGB+CCT · Dynamic White
ConnectionsScrew terminal DMX input · constant current output
AddressingDigital display · buttons · RDM
TerminationIntegrated termination resistor
HousingNon-conductive, non-flammable · IP20
MountingDIN rail · T-bus connection
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Document Request
Contact our sales team for the latest brochure and manual.
APPLICATIONS
Where Is It Used?
Facade Lighting
Multi-channel power LED facade projects.
Projectors
RGBW / RGB+CCT LED projectors.
Architectural Lighting
Tunable white and colour linear lighting.
Stage & Events
Stage and event LED fixtures.
CONTACT
Is DMX Telaris Plus right for your project?
Our technical team helps you choose the right controllers and drivers for your installation.
