DMX-512 / RDM RECEIVER · CONSTANT VOLTAGE · 6-CH

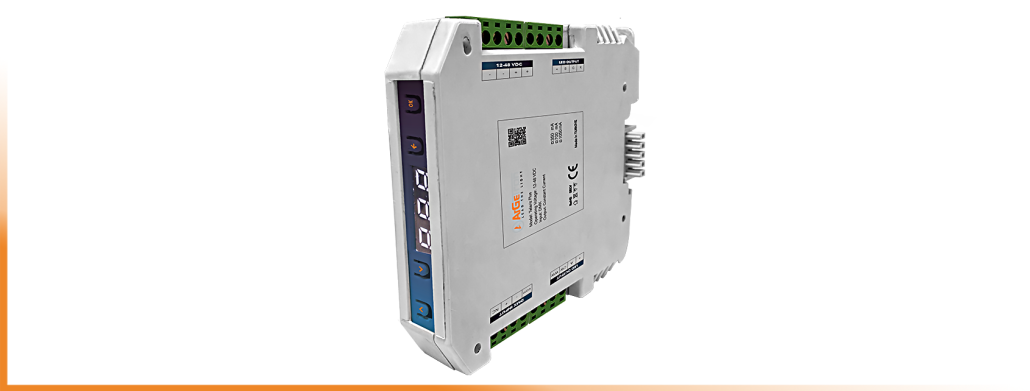

6-Channel Constant Voltage DMX Receiver
The 6-channel version of Altor: more LED groups or RGB + Tunable White combinations from one unit. Constant voltage PWM output, DMX-512 / RDM control. DIN-rail mounting with T-bus connection.
6-Ch PWM3 A / Ch12–24 VdcDMX-RDMDIN Rail · T-Bus
WHY ALTOR PLUS
Key Features
6-Channel PWM Output
For multi-channel LED combinations such as RGBWW or RGB+CCT.
3 A per Channel
Up to 3 A on every channel for 12–24 V constant voltage LEDs.
DMX-512 & RDM
Remote addressing and device discovery with RDM, plus display and buttons for fast on-site setup.
DIN Rail & T-Bus
Quick DIN-rail mounting in the panel, with T-bus connection support.
SPECIFICATIONS
Technical Specifications
ProtocolDMX-512 / RDM
Output6-channel PWM (constant voltage)
Input Voltage12–24 Vdc
Output CurrentMax. 3 A per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · RGB+CCT · Dynamic White
ConnectionsScrew terminal DMX in/out · PWM output
AddressingDigital display · buttons · RDM
TerminationIntegrated termination resistor
HousingNon-conductive, non-flammable · IP20
MountingDIN rail · T-bus connection
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Document Request
Contact our sales team for the latest brochure and manual.
APPLICATIONS
Where Is It Used?
Facade Lighting
Building facade and outdoor RGB/RGBW lighting.
Architectural Lighting
Cove, linear and indirect lighting applications.
Stage & Events
Stage, concert and event lighting systems.
Wallwasher & Bars
LED bars, wallwashers and flexible LED applications.
