PWM REPEATER & BOOSTER · IP67

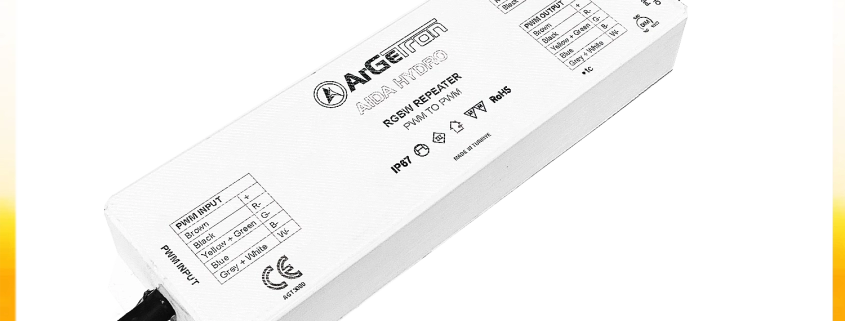

IP67 Outdoor PWM Repeater
The water- and dust-proof IP67 version of Aida. A 4-channel PWM repeater and booster for constant voltage RGB and RGBW applications, built for outdoor and harsh site conditions.
IP674-Ch PWM3 A / ChPWM Input
WHY AIDA HYDRO
Key Features
IP67 Protection
Water- and dust-proof, impact-resistant cabled housing.
4-Channel PWM
Passes the PWM input to four constant voltage outputs.
3 A per Channel
Load boosting on outdoor PWM lines.
Long-Distance Data
Stable data transmission over longer distances than alternatives.
SPECIFICATIONS
Technical Specifications
Input SignalPWM (4-channel)
Output4-channel PWM (constant voltage)
Input Voltage12–24 Vdc
Output CurrentMax. 3 A per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · Dynamic White · CCT
ConnectionsCabled: 2-wire power · 5-wire PWM input · 5-wire PWM output
Protection ClassIP67
Dimensions (W×H×D)133.6 × 22.4 × 41.6 mm
HousingNon-conductive, non-flammable, waterproof
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Product Brochure
Aida Hydro technical brochure (PDF, EN).
APPLICATIONS
Where Is It Used?
Outdoor Facades
Facade lighting exposed to rain and dust.
Landscape & Poolside
Garden, pathway and wet-area lighting.
Outdoor Fixtures
Outdoor LED bars, wallwashers and projectors.
Architectural Exterior
Architectural exterior and bridge lighting projects.
CONTACT
Is Aida Hydro right for your project?
Our technical team helps you choose the right controllers and drivers for your installation.
