DALI DT6 / DT8 DIMMER · CONSTANT VOLTAGE · IP67

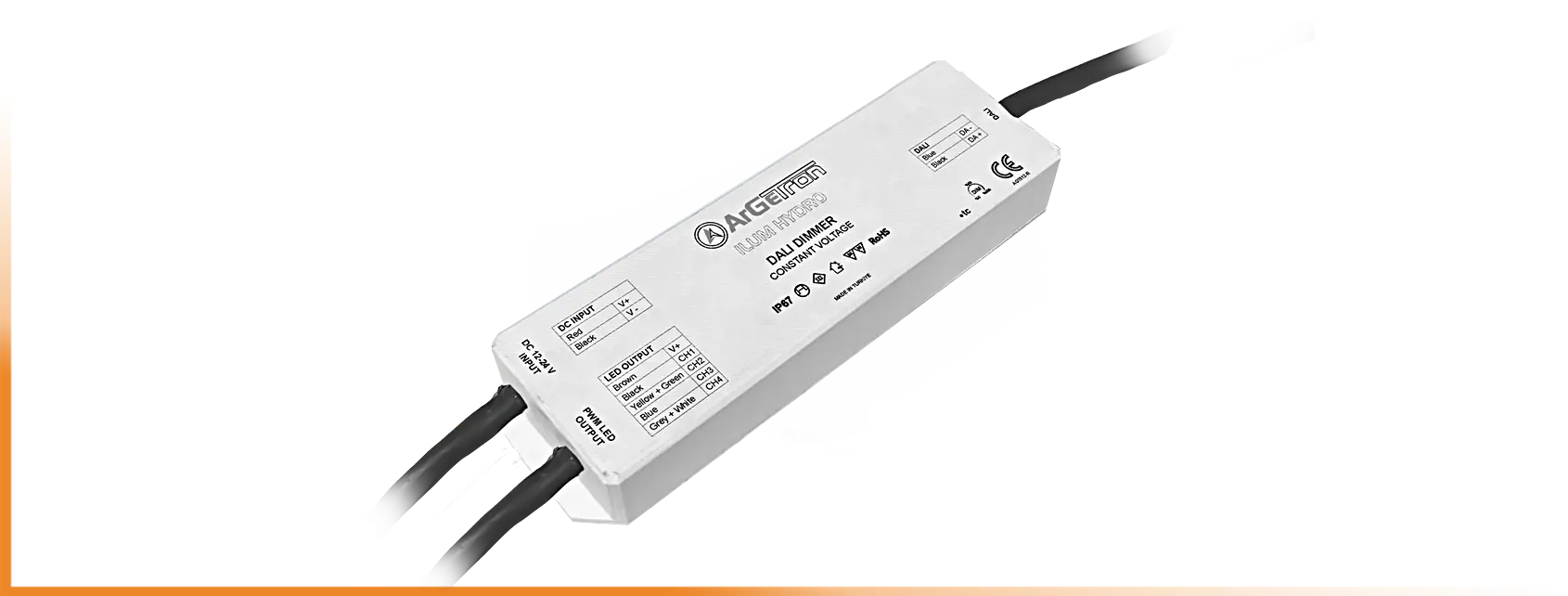

IP67 Outdoor Constant Voltage DALI Dimmer
The water- and dust-proof IP67 version of Ilum. DT6 / DT8 compatible with four PWM outputs; easy installation and seamless integration in outdoor DALI applications.
IP674-Ch PWM3 A / ChDALI DT6 / DT8
WHY ILUM HYDRO
Key Features
IP67 Protection
Water- and dust-proof cabled housing for direct outdoor installation.
4-Channel PWM Output
RGB, RGBW, RGB+CCT and dual RGB applications.
DT6 & DT8 Compatible
Addressing and settings are done from the DALI master.
Memory Function
Keeps the last settings in memory.
SPECIFICATIONS
Technical Specifications
ProtocolDALI · DT6 / DT8
Output4-channel PWM (constant voltage)
Input Voltage12–24 Vdc
Output CurrentMax. 3 A per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · RGB+CCT · Dual RGB
ConnectionsCabled: 2-wire power · 4-wire DALI in/out · 5-wire PWM output
AddressingVia DALI master (no display/buttons)
Protection ClassIP67
Dimensions (W×H×D)133.6 × 22.4 × 41.6 mm
HousingNon-conductive, non-flammable, waterproof
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Document Request
Contact our sales team for the latest brochure and manual.
APPLICATIONS
Where Is It Used?
Outdoor Facades
Facade lighting exposed to rain and dust.
Landscape & Poolside
Garden, pathway and wet-area lighting.
Outdoor Fixtures
Outdoor LED bars, wallwashers and projectors.
Architectural Exterior
Architectural exterior and bridge lighting projects.
