PWM REPEATER & BOOSTER · CONSTANT VOLTAGE

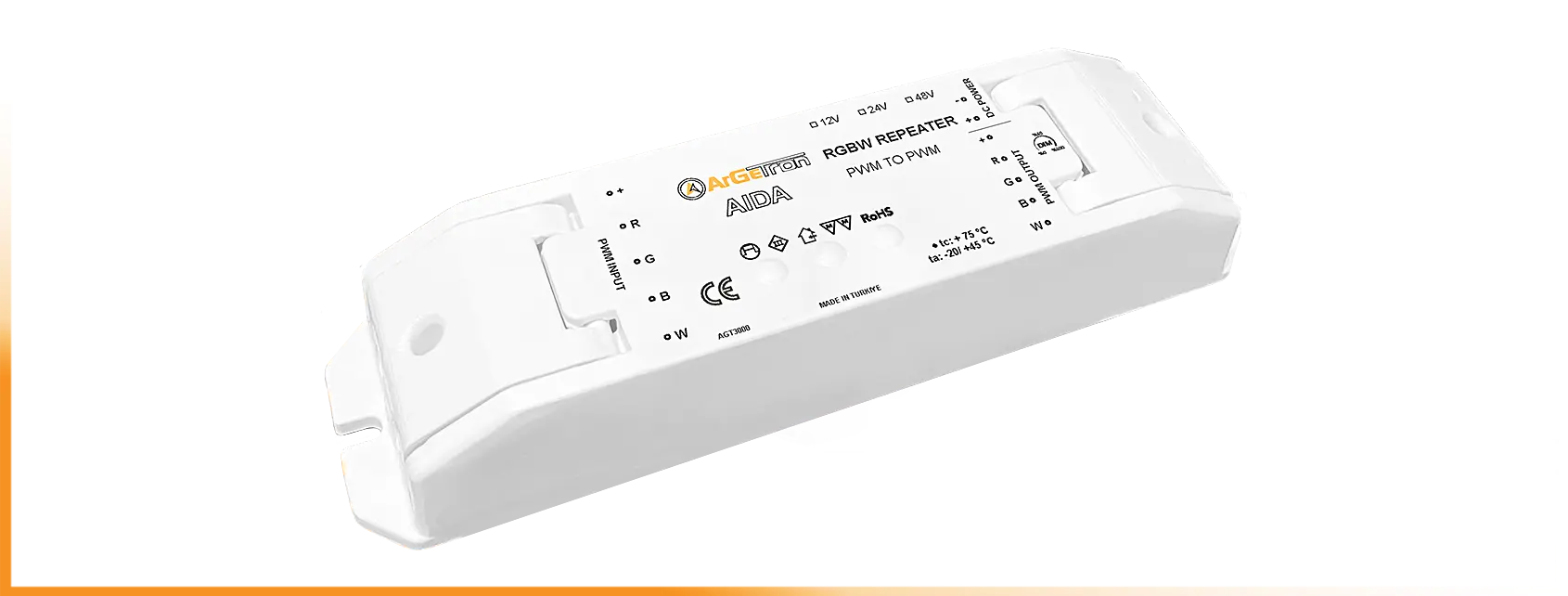

4-Channel PWM Repeater
An industrial-standard, reliable PWM repeater and booster for constant voltage RGB and RGBW LED bars. Regenerates the PWM line and drives up to 3 A of extra load per channel.
4-Ch PWM3 A / Ch12–24 VdcPWM Input
WHY AIDA
Key Features
4-Channel PWM
Passes the PWM input to four constant voltage outputs at the same ratio.
3 A per Channel
A booster to extend the load of an existing PWM line.
500 m Data Distance
Can be connected with up to 500 m of data cable.
Synchronous Operation
Stable, synchronous output with low sensitivity to noise.
SPECIFICATIONS
Technical Specifications
Input SignalPWM (4-channel)
Output4-channel PWM (constant voltage)
Input Voltage12–24 Vdc
Output CurrentMax. 3 A per channel
Data Cable DistanceUp to 500 m
Power Consumption< 1 W
Colour ModesRGB · RGBW · Dynamic White
Connections5-pin screw terminal PWM input · 5-pin PWM output
Dimensions (W×H×D)160 × 22.4 × 41.6 mm
Weight80 g
HousingNon-conductive, non-flammable · IP20
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Product Brochure
Aida technical brochure (PDF, EN).
User Manual
Aida user manual (PDF).
APPLICATIONS
Where Is It Used?
Facade Lighting
Long-run RGB/RGBW LED bar facade applications.
Cove & Linear
Cove, linear and decorative lighting.
Flexible LED
Flexible LED strip and neon applications.
Line Extension
Boost the PWM line to extend load per channel.
