DALI DT6 / DT8 DIMMER · CONSTANT VOLTAGE

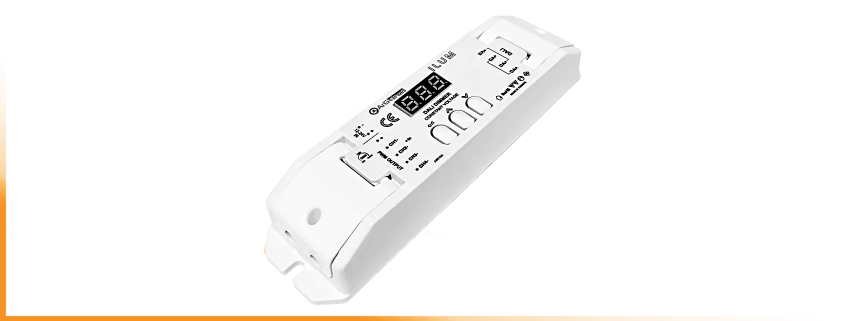

4-Channel Constant Voltage DALI Dimmer
A DT6 and DT8 compatible LED dimmer that integrates directly into DALI systems. Four PWM outputs drive RGB, RGBW, RGB+CCT and dual RGB applications.
4-Ch PWM3 A / Ch12–24 VdcDALI DT6 / DT8
WHY ILUM
Key Features
DT6 & DT8 Compatible
Seamless integration with DALI masters and KNX-DALI gateways.
4-Channel PWM Output
RGB, RGBW, RGB+CCT and dual RGB in a single unit.
3 A per Channel
For 12–24 V constant voltage LED bars and strips.
Memory Function
Keeps the last settings in memory for easy commissioning.
SPECIFICATIONS
Technical Specifications
ProtocolDALI · DT6 / DT8
Output4-channel PWM (constant voltage)
Input Voltage12–24 Vdc
Output CurrentMax. 3 A per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · RGB+CCT · Dual RGB
ConnectionsScrew terminal DALI in/out · 5-pin PWM output
User Interface3-digit display · 3 buttons
Dimensions (W×H×D)160 × 22.4 × 41.6 mm
Weight75 g
HousingNon-conductive, non-flammable · IP20
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
User Manual
Dali Ilum user manual (PDF).
APPLICATIONS
Where Is It Used?
Architectural Lighting
Indoor architectural and decorative lighting projects.
LED Bars & Linear
RGB/RGBW LED bars, strips and linear fixtures.
Retail & Display
Shop, showroom and display window lighting.
Smart Buildings
Building automation with DALI masters and KNX-DALI gateways.
CONTACT
Is Dali Ilum right for your project?
Our technical team helps you choose the right controllers and drivers for your installation.
