DMX-512 / RDM RECEIVER · CONSTANT VOLTAGE · IP67

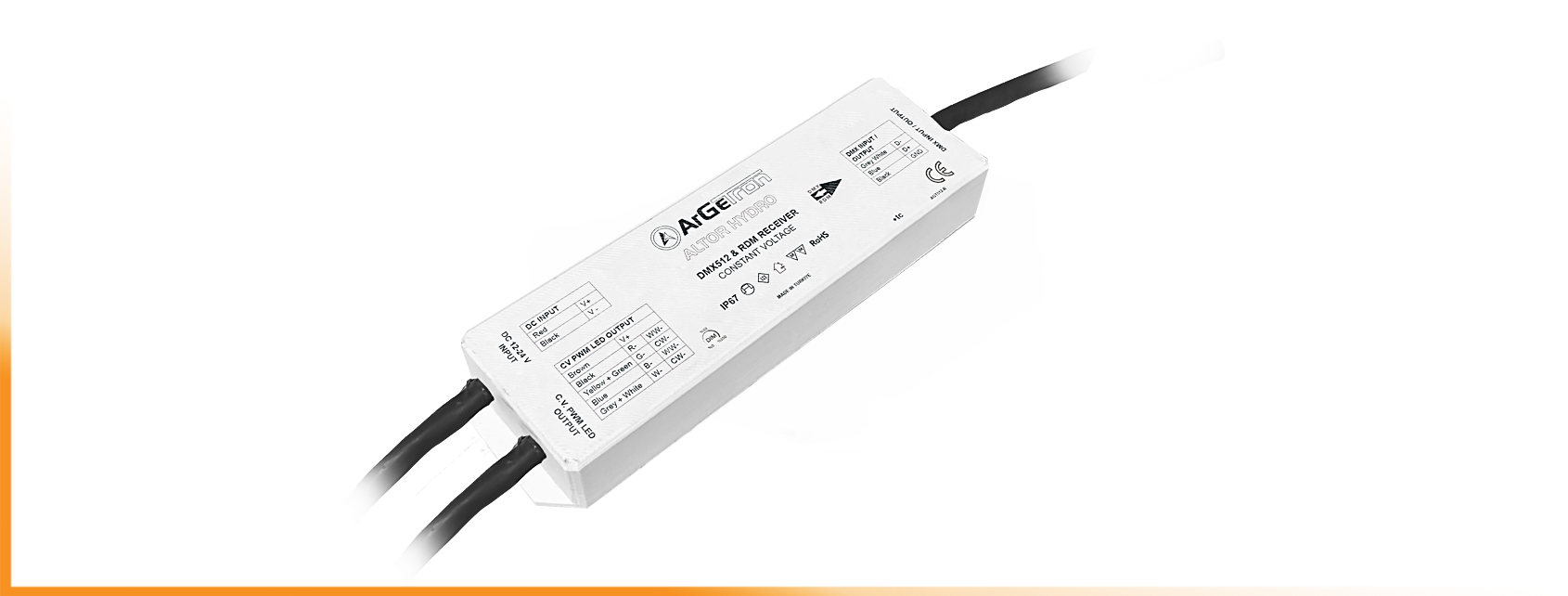

IP67 Outdoor Constant Voltage DMX Receiver
The water- and dust-proof IP67 version of Altor. Four constant voltage PWM outputs; addressing is done entirely over RDM — no display or buttons needed outdoors.
IP674-Ch PWM3 A / ChRDM Addressing
WHY ALTOR HYDRO
Key Features
IP67 Protection
Water- and dust-proof cabled housing for direct outdoor installation.
4-Channel PWM Output
Drive RGB, RGBW or Dynamic White LED groups.
Addressing via RDM
No display or buttons; address and settings are configured remotely over RDM.
Stable Operation
Low sensitivity to electrical noise with integrated termination.
SPECIFICATIONS
Technical Specifications
ProtocolDMX-512 / RDM
Output4-channel PWM (constant voltage)
Input Voltage12–24 Vdc
Output CurrentMax. 3 A per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · Dynamic White
ConnectionsCabled: 2×0.5 mm² power · 3×0.5 mm² DMX in/out · 5×0.5 mm² PWM output
AddressingRDM only (no display/buttons)
Protection ClassIP67
Dimensions (W×H×D)133.6 × 22.4 × 41.6 mm
HousingNon-conductive, non-flammable, waterproof
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Product Brochure
DMX Altor Hydro technical brochure (PDF, EN).
APPLICATIONS
Where Is It Used?
Outdoor Facades
Facade lighting exposed to rain and dust.
Landscape & Poolside
Garden, pathway and wet-area lighting.
Outdoor LED Bars
Outdoor RGB/RGBW LED bars and wallwashers.
Open-Air Events
Festival and open-air stage systems.
CONTACT
Is DMX Altor Hydro right for your project?
Our technical team helps you choose the right controllers and drivers for your installation.
