DMX-512 / RDM RECEIVER · CONSTANT CURRENT

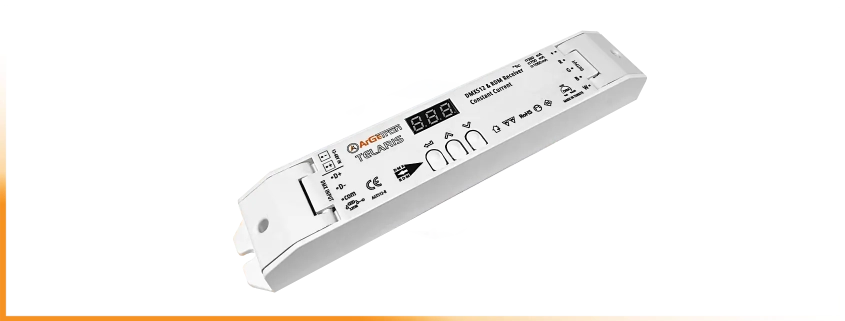

4-Channel Constant Current DMX Receiver
A DMX-512 / RDM receiver for power LED products that must be driven with constant current. Selectable 350 or 700 mA per channel; safely drives up to 15 LEDs in series.
4-Ch350 / 700 mA12–48 VdcDMX-RDM
WHY TELARIS
Key Features
Selectable Constant Current
350 mA or 700 mA per channel, set according to the project.
15 LEDs in Series
Up to 15 series-connected power LEDs on every channel.
DMX-512 & RDM
Remote addressing and device discovery with RDM.
Max Power Limitation
Power limiting protects LEDs and driver for stable operation.
SPECIFICATIONS
Technical Specifications
ProtocolDMX-512 / RDM
Output4-channel constant current
Output Current350 / 700 mA (selectable per channel)
Input Voltage12–48 Vdc
LEDs in SeriesUp to 15 per channel
Power Consumption< 1 W
Colour ModesRGB · RGBW · Dynamic White
Connections3-pin screw terminal DMX input · 5-pin constant current output
AddressingDigital display · 3 buttons · RDM
TerminationIntegrated termination resistor
Dimensions (W×H×D)216.7 × 27.5 × 37.5 mm
HousingNon-conductive, non-flammable · IP20
MountingFlat body
Operating Temperature-20 … +50 °C
Humidity0 … 80% (non-condensing)
Electrical SafetySELV
CertificateCE
DOWNLOAD
Documents
Product Brochure
DMX Telaris technical brochure (PDF, EN).
User Manual
DMX Telaris user manual (PDF).
APPLICATIONS
Where Is It Used?
Facade Lighting
Power LED facade and wallwasher projects.
Projectors
DMX-controlled RGB/RGBW LED projectors.
Architectural Lighting
Linear and spot lighting requiring constant current.
Stage & Events
Stage and event LED fixtures.
CONTACT
Is DMX Telaris right for your project?
Our technical team helps you choose the right controllers and drivers for your installation.
